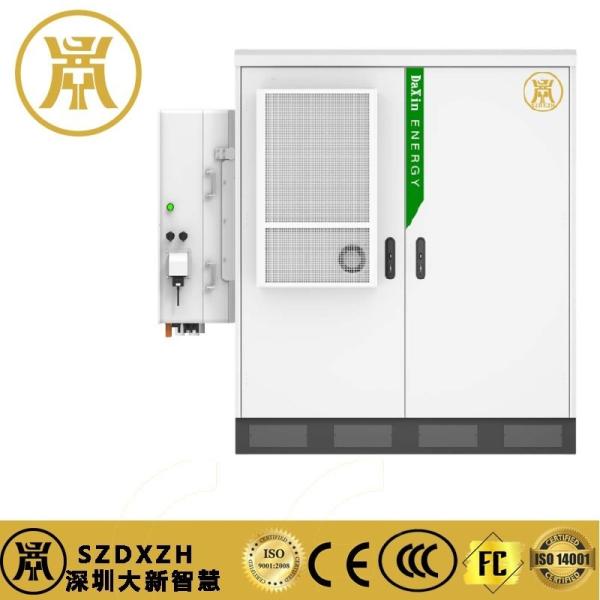

| Model | DX-BESS-50K130 |
| System Specification |
| Nominal Output Power/UPS Power (W) | 50000 |
| AC Output Frequency and Voltage | 50/60Hz; 3L/N/PE 220/380, 230/400Vac |
| Grid Type | Three phase |
| Energy Configuration (kWh) | 133.12 |
| Dimension (W x D x H,mm) | 1400x1000x1650 (no contain inverter) |
| Weight Appr. (kg) | ~1500 |
| AC Output Rated Current (A) | 75.8 |
| Battery Operating Voltage (V) | 400 ~800 |
| Battery Chemistry | LiFePO4 |
| IP Rating of Enclosure | IP55 |
| System Certification | UN38.3, IEC62619, CE, CEI 0-21, VDE-AR-N 4105, IEC 62109 |
| Installation Style | Floor-Mounted |
| Warranty | 10 years |

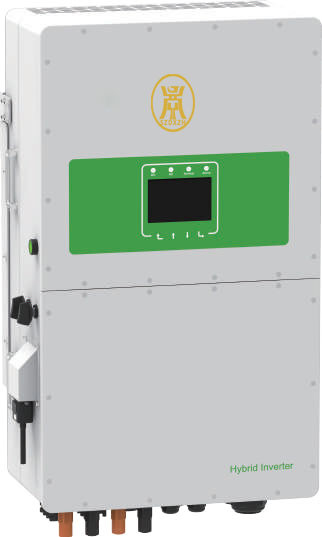

| Inverter Technical Specification |
|
|
| Max Parallel connection sets | 10 |
| Max. PV Input Power (W) | 65000 |
| Max. PV Input Current (A) | 36+36+36+36 |
| Rated PV Input Voltage (Vdc) | 600 |
| Start Up DC Voltage (Vdc) | 180 |
| MPPT Voltage Range (Vdc) | 150-850 |
| Max. PV Short-circuit Current (A) | 55+55+55+55 |
| Number of MPPT | 4 |
| Peak Power (off grid) | 1.5 time of rated power, 10s |
| Power Factor | 0.8 leading to 0.8 lagging |
| THD | <3% |
| DC injection current (Ma) | <0.5ln |
| Display | LCD |
| Operating Temperature Range (℃) | -40~60( >45℃ derating) |
| Relative Humidity | 15% ~ 85% (No Condensing) |
| Dimension (W x D x H, mm) | 527x294x894 (~80KG) |
| Inverter Communication | CAN, RS485, WIFI, ETH |
| Safety EMC / Standard | IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4 |
| Grid Regulation | VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150 |
| Max. Efficiency | 97.6% |
| Max. charging/discharging efficiency | 91% |

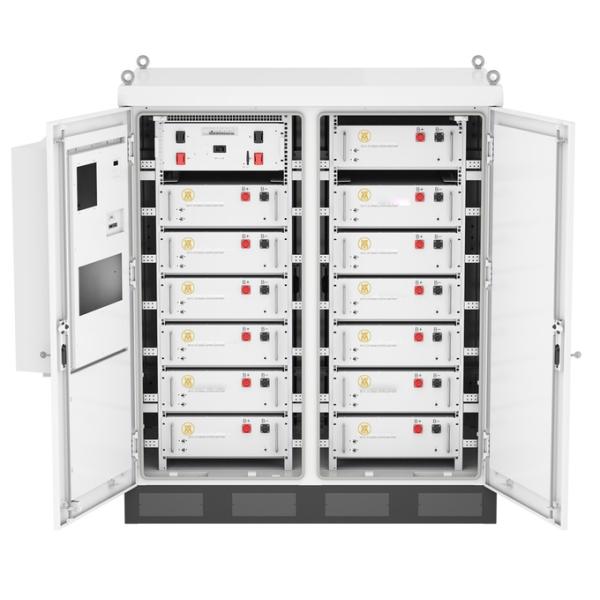

| Battery Technical Specification |
|
|
| Battery Module Nominal Voltage (V) | 665.6V |
| Battery Capacity | 200Ah |
| Battery Energy (kWh) | 133.12KWH |
| BMS Communication | CAN |
| BMS parallel support connection | 3sets |
| Max charge current | 100A |
| Max discharge current | 100A |
| Battery system Weight (kg) | 1420 |
| Operating Temperature Range | Charge: 0～55℃ /
Discharge: -20℃～55℃ |
| Cycle Life | ≥6500(@25℃±2℃,0.5C/0.5C,70%EOL) |
| Battery Module Certification | CE, IEC62619, IEC62040, UN38.3, MSDS |
| Protection |
| Short circuit protection | YES |
| Over current protection | YES |
| Over charge protection | YES |
| Over temperature protection | YES |
| Cell over voltage protection | YES |
| Cell under voltage protection | YES |
| Over discharge protection | YES |
